您當前的位置 : 首頁>>產品中心 Products>>多功能撒肥機系列

2~5方 單側開溝撒肥機-施肥機-撒糞車-撒糞機-撒布車

產品屬性

  • 所屬類別:多功能撒肥機系列
  • 商品來源:中頤農裝
  • 瀏覽次數:805
  • 發布日期:2021-10-07 10:16:32
  • 產品概述

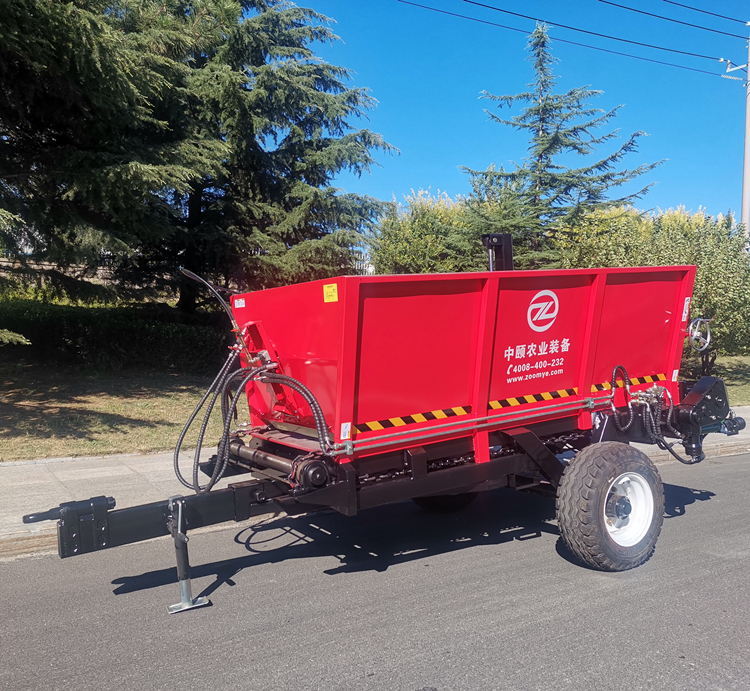

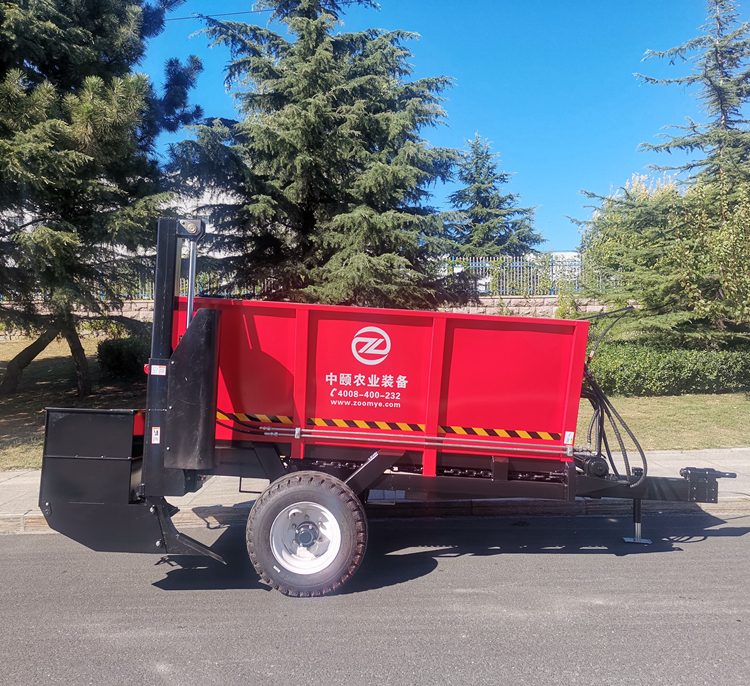

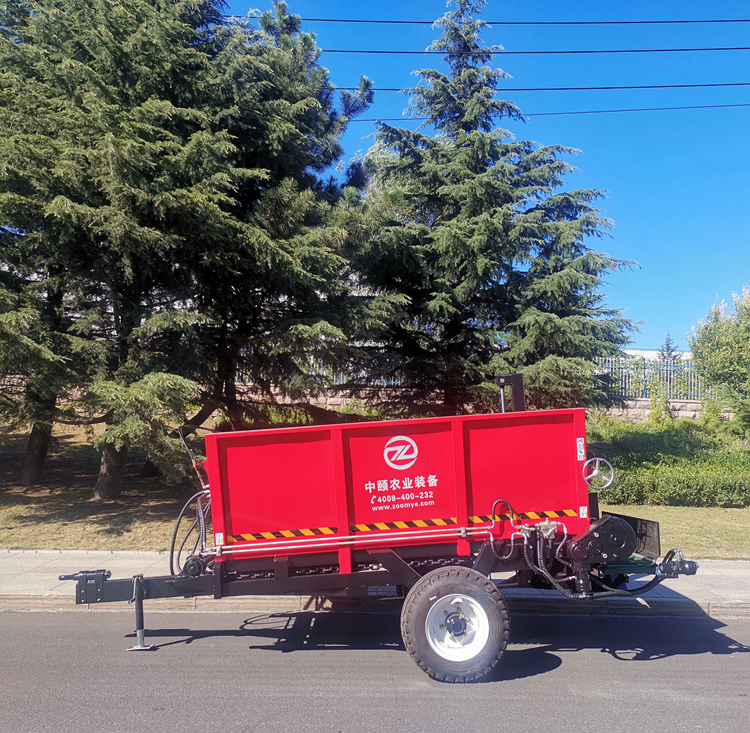

多功能撒肥機系列 (施肥機  撒糞車 撒糞機 撒布車)

Multi-function Manure spreader series (fertilizer spreader 、manure spreader 、Organic fertilizer spreader)


描述Description:


多功能施肥機系列產品是我公司技術團隊于2015年針對現代化果園施用有機肥及大化肥作業難度大、勞動強度高、工作效率低的需求,自主研發的擁有完全知識產權的高效固體物料撒布機械??梢詫η菪蠊腆w糞便有機肥、酒糟、糖渣、花生殼、稻殼、木糞、石灰、化肥、微肥等固體物料進行開溝深施、單雙側拋撒、定向輸送等田間作業??筛鶕?jù)農藝要求附加大化肥及微量元素肥料箱,實現多種物料混合使用。該系列撒肥機曾因其高作業效率及創新性被CCTV-17 農業農村頻道《我愛發明》欄目重點報道。

The multi-functional fertilizer applicator series products are highly efficient solid material spreading machines with full intellectual property rights independently developed by our technical team in 2015 to meet the requirements of difficult, high labor intensity and low work efficiency of applying organic fertilizer and large chemical fertilizer in modern orchards. It can be used for deep application of solid materials such as organic fertilizer, distiller's grains, sugar residue, peanut shells, rice husks, wood dung, lime, chemical fertilizer, micro fertilizer, etc. Large chemical fertilizer and microelement fertilizer box can be added according to agronomic requirements to realize mixed use of various materials.

This series of fertilizer spreaders has been highlighted by CCTV-17 Agricultural and Rural Channel's "I Love Invention" column for its high operating efficiency and innovation.



整機主要液壓件 采用歐美 世界名牌

● The main hydraulic parts of the whole machine are European and American famous brands

整機全液壓驅動 無級調速 操作簡便

● Full hydraulic drive stepless speed regulation of the whole machine is easy to operate

不需使用傳動軸與拖拉機連接 轉彎半徑小

● No need to use the transmission shaft to connect with the tractor. The turning radius is small

傳送鏈排恒速輸送 出肥量均勻穩定

● The conveyor chain row delivers fertilizer evenly and stably at constant speed

高強度鏈排刮板結構 對各種物料適應性強

High strength chain scraper structure has strong adaptability to various materials

全系標配不銹鋼料箱 終生免維護

● All standard stainless steel bins are maintenance free for life

特殊設計的料箱傾角 出料干凈

● The specially designed hopper inclination is clean

高強度車架結構 機械裝填無憂

● High strength frame structure can be mechanically loaded without worry

多功能設計集開溝、施肥、覆土、拋撒于一體

● Multi functional design integrates trenching, fertilization, soil covering and scattering

多種配套輔具可靈活選裝

● A variety of supporting accessories can be flexibly installed

效率極高 單人單機輕松作業代替多人團隊艱苦作業!省工省錢!

● Very efficient single person single machine easy operation instead of multi person team hard work! Save labor and money!



1、果園系列(2-5m3) Orchard series (2-5m 3)

(1)單側開溝 (1) Single side ditching

(2)單側拋撒 (2) Unilateral scattering

(3)雙側拋撒 (3) Bilateral dispersal

※選裝 雙側開溝、底盤升降、視頻監控系統

Optional double side ditching, chassis lifting and video monitoring system

2、大田系列(2-10m3) Daejeon series (2-10m 3)

(1)后雙拋撒盤式 (1) Rear double throwing tray type

(2)橫蛟龍式(2) Horizontal Dragon Style

(3)雙豎蛟龍(3) Double Vertical Dragon

※選裝 視頻監控系統

Optional video monitoring system

3、苗圃系列(2-10m3) Nursery series (2-10m 3)

苗圃系列木糞撒布機是我公司根據苗圃企業對壓苗床多次撒布木糞農藝要求,在施肥機基礎上經過結構調整、功能調整而二次開發的專門針對苗圃等應用場景的專用機器。該系列機型采用了前置定向出料結構,增加了輔助下料機構,采用高地隙設計。

Nursery series wood manure spreader is a special machine specially developed for nursery and other application scenarios after structural adjustment and functional adjustment on the basis of fertilizer spreader according to the agronomic requirements of nursery enterprises for multiple times of spreading wood manure on the seedling bed. This series of models adopts a front oriented discharging structure, an auxiliary blanking mechanism and a high clearance design.



 2FGS-2.3 / 2FGS-3型撒肥機(施肥機)產品規格表

Product specification table of 2FGS-2.3/2FGS-3 Manure spreader

序號

Serial   No.

項目

Item

單位

Unit

主要參數

Main   parameter

1

型號名稱Model Name

/

2FGS-3型撒肥機

2FGS-3 Manure spreader

2FGS-2.3型撒肥機

2FGS-2.3 Manure spreader

2

結構型式Structural Style

/

廂體Body

廂體Body

3

作業方式 Operation mode

/

深施

Buried Application

深施

Buried Application

4

料廂內廓尺寸(長××高)

Overall dimensions of the   compartment (L×W×H)

mm

上部(×)

Upper (L×W) 2771×1433

下部(×)

Lower(LxW):2701×1056

H890

上部(×)

Upper   (L× W)2121×1433

下部(×)

Lower(LxW):2052×1056

H890

5

料廂容積 Bin volume

m3

3

2.3

6

最大載重量 Maximum load

kg

3600

2600

7

配套動力值(范圍)

Supporting power value   (range)

kW

36.873.5

36.873.5

8

施肥裝置型式

Fertilizer application device   type

/

后置開溝深施

Post ditch deep construction

后置開溝深施

Post ditch deep construction

9

肥料輸送方式

Fertilizer transportation   mode

/

液壓鏈板推送

Hydraulic   chain plate pushing

液壓鏈板推送

Hydraulic chain plate pushing

10

拋撒寬度

Spreading width

m

/

/

11

承重車橋數量

Number of load-bearing axles

Pcs.

1

1

12

輪距 Wheel tread

mm

1550

1550

13

輪胎規格

Tyre type

/

7.50-16

10.5/65-16

7.50-16

10.5/65-16

14

輪胎數量

Tyre Amount

Pcs.

2

2

15

施肥深度

Fertilizer application depth

cm

2232

2232

16

外形尺寸(長××高)

Overall dimensions (L × W ×   H)

mm

4800×1850×2280

4170×1850×2280

17

作業速度

Operating   speed

km/h

24

24

18

生產率 Productivity

hm2/h

/

/

19

結構質量 Structural quality

kg

1385

1234



 *參數表僅描述了基本參數,高配高功率及選裝配置參數請咨詢中頤公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

 *規格參數及外觀,隨產品開發不斷更新,具體參數請咨詢中頤公司,以中頤公司最新參數為準,以上參數不作為整機驗收依據。咨詢電話 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
